Product Center
产品中心
| Part No. | Configuration | VDSS(V) | Rdson_typ(mΩ) | Rdson_max (mΩ) | Package | View | Status | Datasheet |

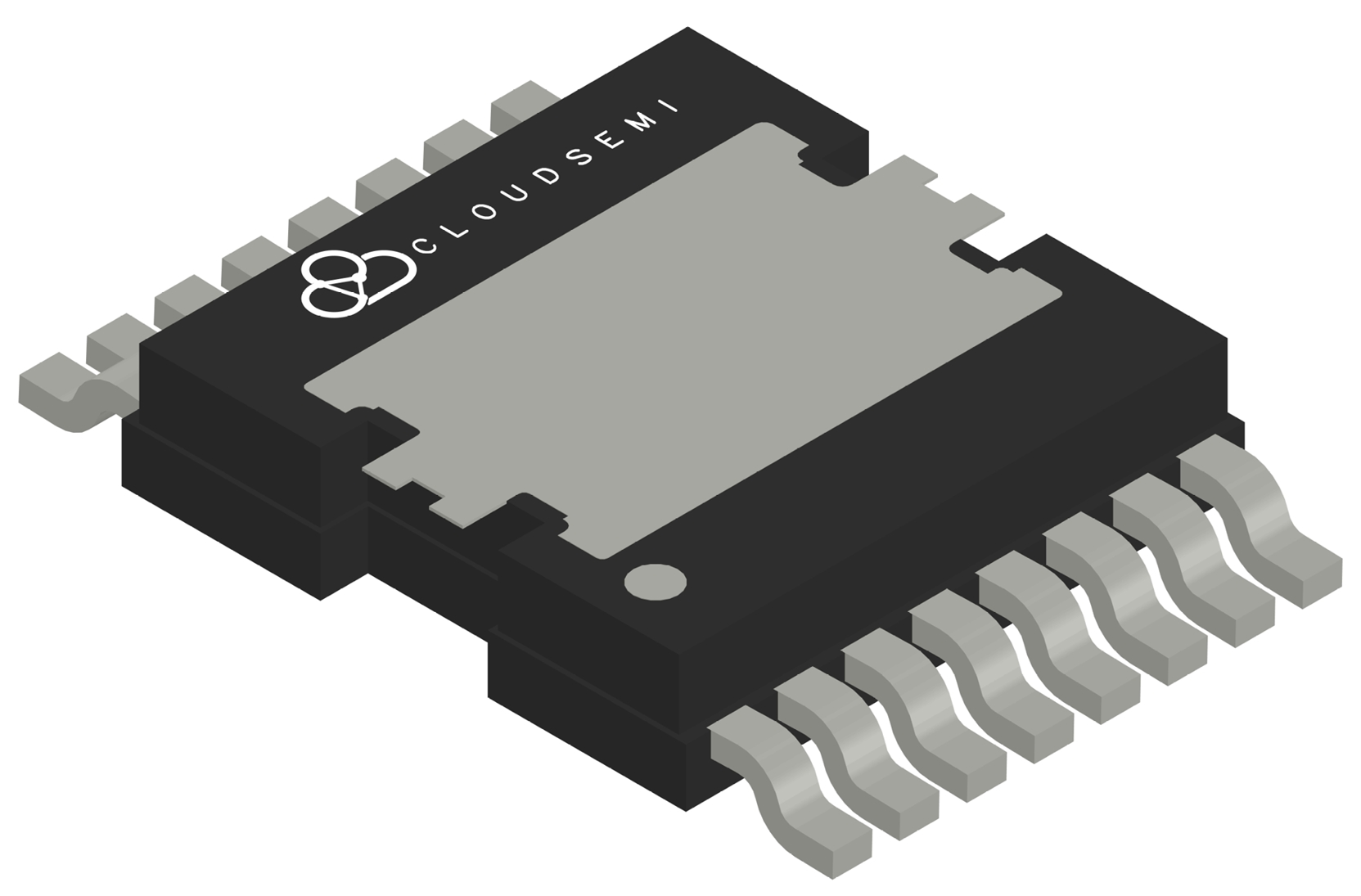

| CGK65090TBD | BDS | 650 | 60 | 90 | TOLT |  |
Sample |
|
| CGK65070TBB | BDS | 650 | 50 | 70 | TOLT | |
2026Q2 |
|
| CGK65015QPB | HV BDS | 650 | 12 | 15 | QD-PAK | |
2026Q3 |
|
| Part No. | Configuration | VDSS(V) | Vcc(V) | Rdson_typ (mΩ) | Package | View | Status | Datasheet |

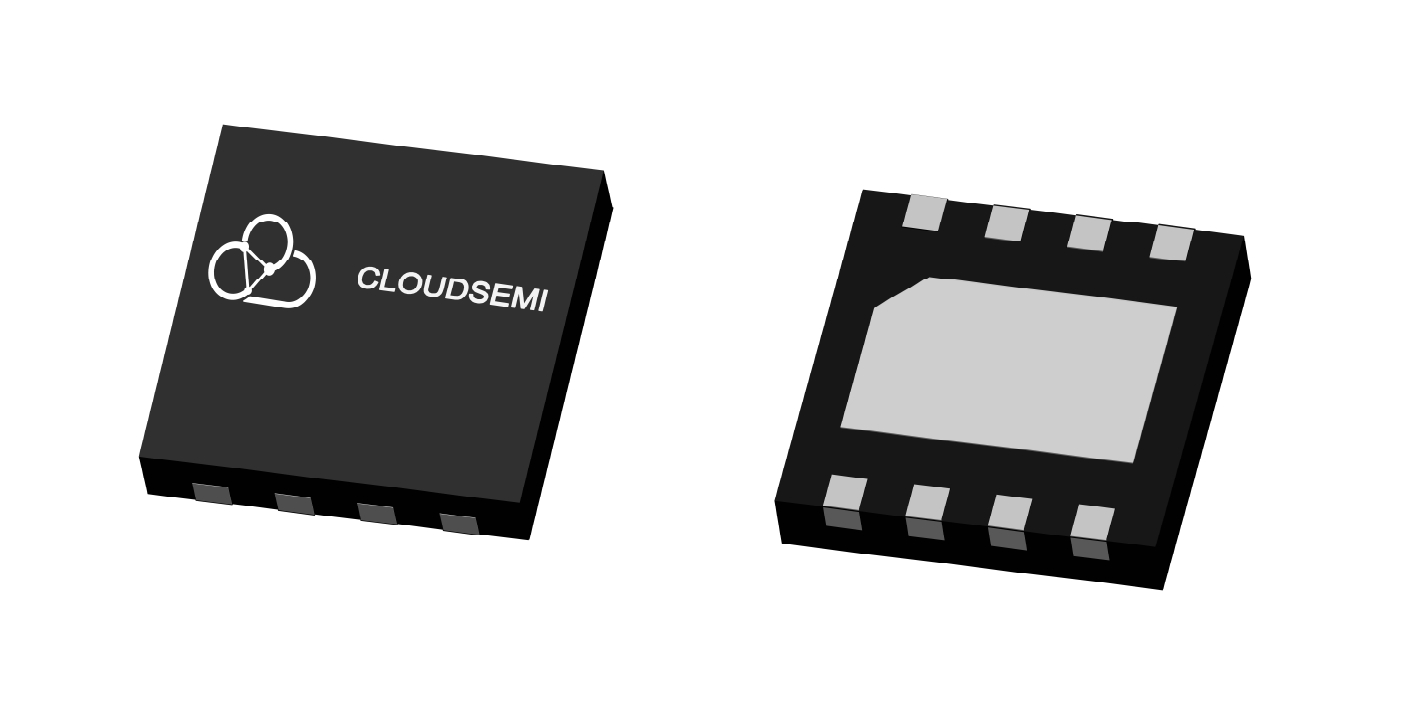

| CGD1001 | Single-channel GaN driver | / | 10 ~ 18 | / | DFN3*3 |  |
MP |
|

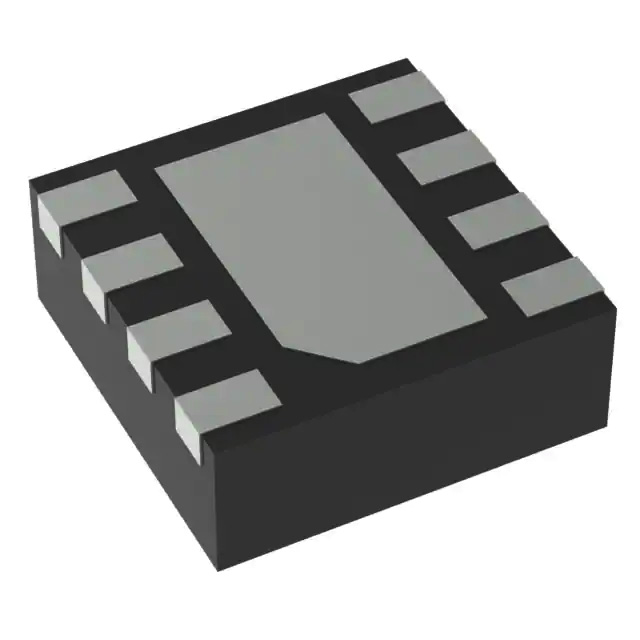

| CGD1003 | Single-channel GaN driver | / | 4.75~5.25 | / | WFDFN2*2 |  |
MP |
|
| CGD2101WL | Half-bridge LV GaN driver | / | 4.75 ~ 5.25 | / | WLCSP |  |
MP |
|
| CGR1101 | Driver + Single | 100 | 4.75 ~ 5.25 | 5.5 | DFN5*6 |  |
MP |
|
| CGR1601 | Driver + Single | 650 | 10 ~ 18 | 140 | DFN6*8 |  |
MP |
|
| CGR2601 | Driver + HS/LS | 650 | 10 ~ 18 | 140 / 140 | QFN9*9 |  |
MP |
|
