HV GaN FETs
Part No. Configuration VDSS (V) Rdson_typ (mΩ) Rdson_max (mΩ) QG (nC) QOSS (nC) Package View Status Datasheet Spice Model
CG65030TAD (G2) Single 650 25 30 14.3 133 TOLL MP
CG65030TBD (G2) Single 650 25 30 14.3 133 TOLT MP
CG65065DAD (G2) Single 650 50 65 6.5 60 DFN8*8 MP
CG65065TAD (G2) Single 650 50 65 6.5 60 TOLL MP
CG65080TAA Single 650 70 80 6 60 TOLL MP
CG65140DAA Single 650 100 140 3.3 33 DFN8*8 MP
CG65140DBA Single 650 100 140 3.3 33 DFN5*6 MP
CG65200DAA Single 650 160 200 2.3 22 DFN8*8 MP
CG65200DBA Single 650 160 200 2.3 22 DFN5*6 MP
CG65200TDA Single 650 160 200 2.3 22 TO252-3L MP
CG65200TCA Single 650 160 200 2.3 22 TO220F MP

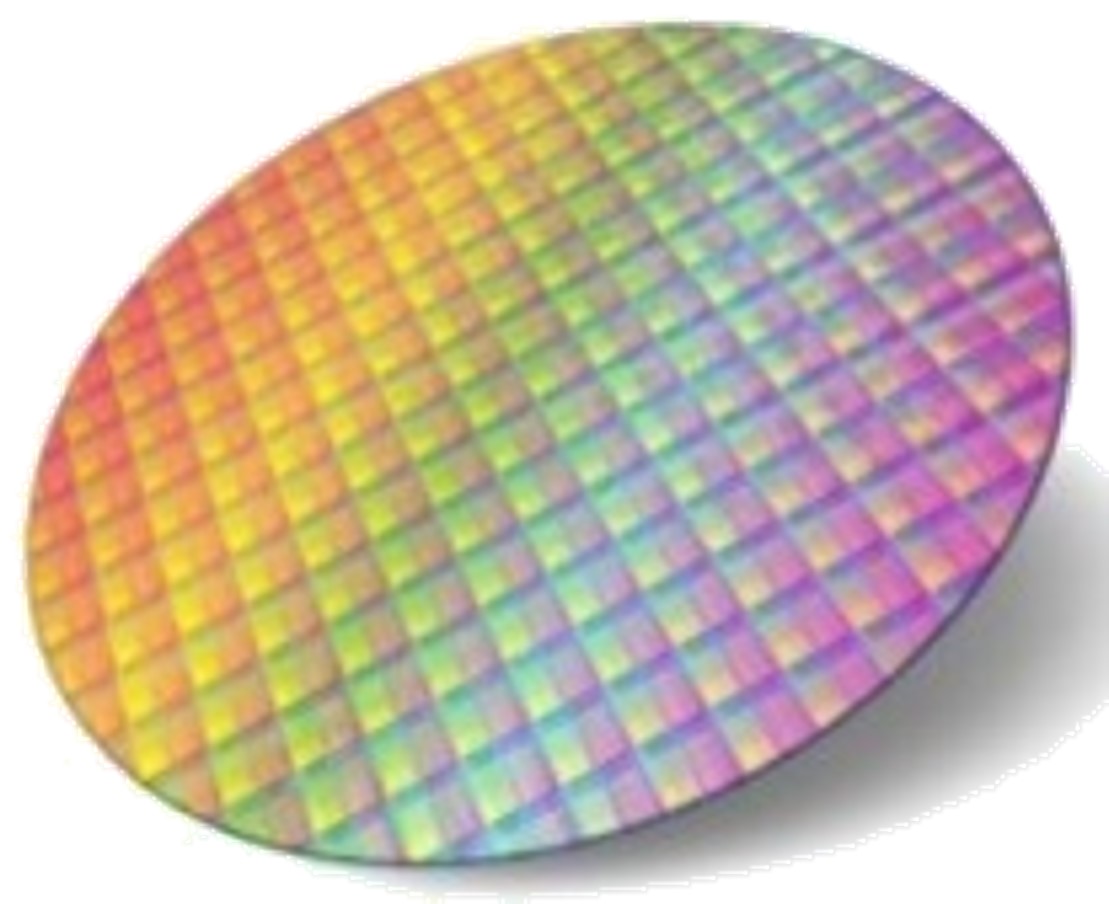

CG65055D0-CP Single 650 42 55 6.3 60 Wafer MP
CG65030D0-CP Single 650 25 30 14.3 133 Wafer MP

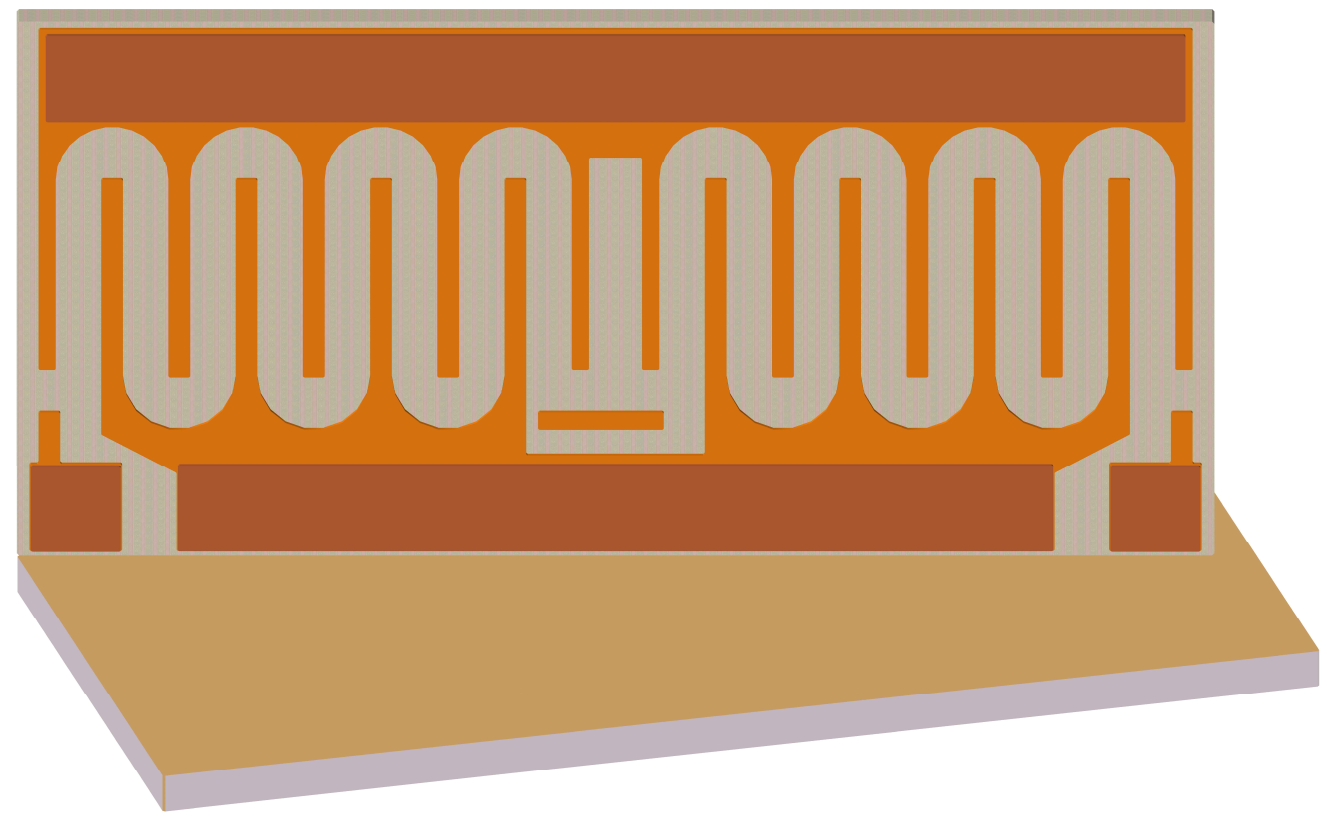

CG65012CAD (G2) Single 650 10 12 28 255 Bare Die Sample available
LV GaN FETs
Part No. Configuration VDSS (V) Rdson_typ (mΩ) Rdson_max (mΩ) QG (nC) QOSS (nC) Package View Status Datasheet Spice Model

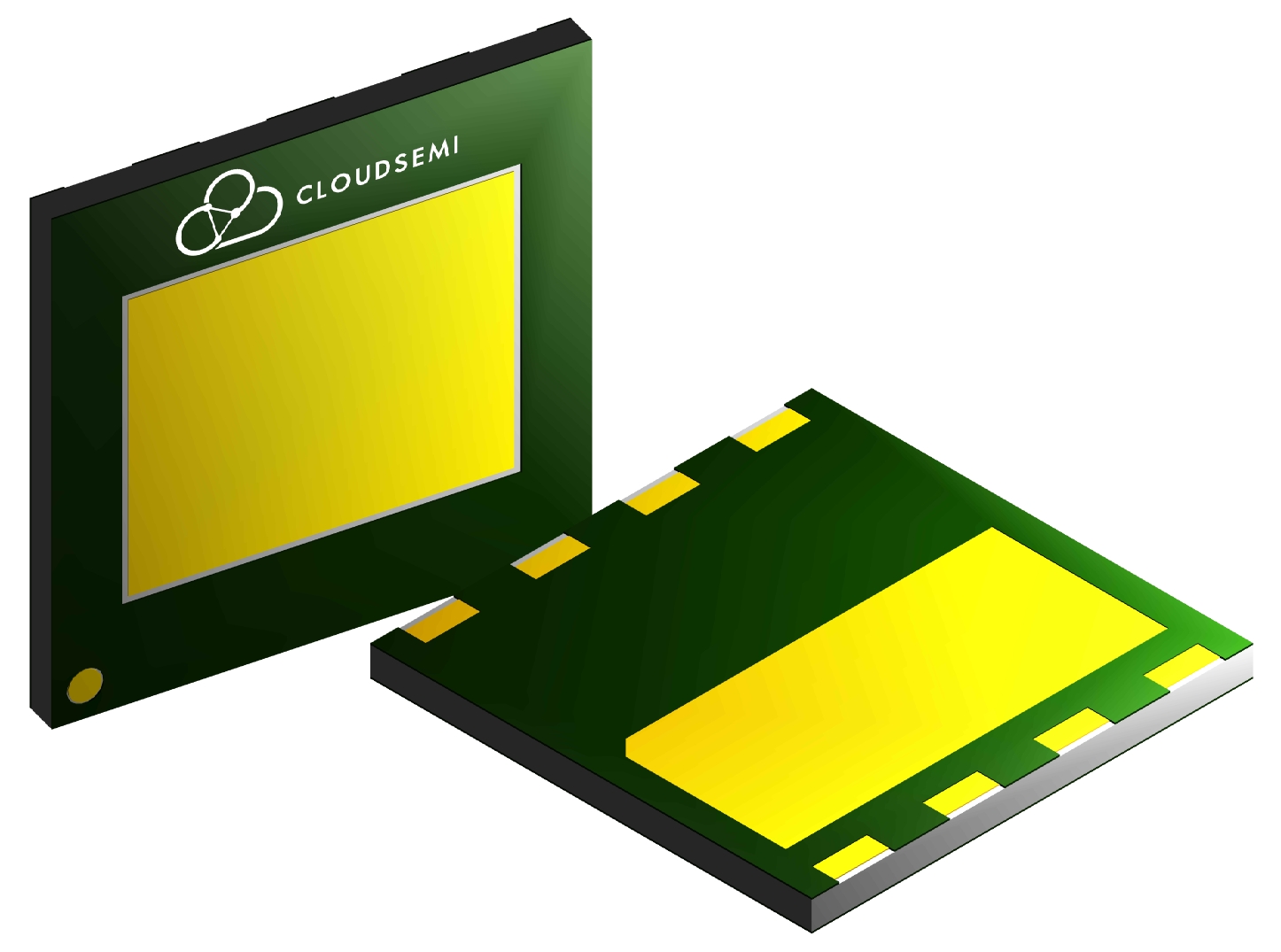

CG10070EAD Single 100 5.5 7.0 5 25 ECP Sample, 24Q4 Contact us info@cloudsemi.net
CG10035EAD Single 100 2.7 3.5 9 49 ECP Sample, 25Q1 Contact us info@cloudsemi.net
